Trusted Action Validation Protocol

The Trusted Action Validation Protocol (TAVP) — formerly referred to as Trusted Transaction Validation Protocol (TTVP) — enforces user intent verification and transaction-level authentication inside a Trusted Execution Environment (TEE). It enables DSP-SCA-compliant validation by binding biometric confirmation and user input directly to the device’s Secure Element (SE), ensuring that sensitive actions are cryptographically confirmed by the user.

Objective​

TAVP is designed to:

  • Protect against malware or remote compromise of mobile wallets
  • Ensure that each sensitive transaction or action is explicitly verified by the user
  • Guarantee that inputs are signed by secure hardware, not emulated or spoofed by software
note

While originally described as TTVP in earlier milestone documentation, the protocol has been generalized to TAVP to reflect its broader applicability — including transaction signing, recovery flows, and other action-level confirmations.

How It Works​

TAVP is based on two dedicated extrinsics, AUTH-REQ and AUTH-RSP, executed within the TEE. The protocol follows this multi-step flow:

1. Action Validation Request​

A transaction or sensitive action message is sent to the Interstellar runtime through the AUTH-REQ extrinsic. If submitted by the user’s mobile app using a mobile SDK it is signed with the mobile SE. Alternatively, an unsigned extrinsic that may optionally include a signed extension if submitted by a third party (e.g. dApp).

2. VCA Token Creation​

The TEE generates a garbled circuit containing both a randomized keypad layout and a user-readable message (e.g., transaction summary). This one-time-use VCA Token is uploaded to IPFS and the CID is sent back to the user’s mobile app.

3. Biometric Unlock​

The user authenticates locally using biometrics (e.g., Face ID, fingerprint), unlocking the Secure Element for touch validation.

4. Visual Action Challenge​

The VCA Token is evaluated on the mobile device. It renders a randomized keypad and message confirmation screen:

  • The user sees the action summary (e.g., "Send 300 DOT to Alice")
  • A 2–4 digit code is entered using a shuffled keypad to prevent replay or recording attacks

5. SE-Signed Confirmation​

The touch positions of the user-entered code are:

  • Signed by the Secure Element, using the mobile key
  • Optionally encrypted and returned via the AUTH-RSP extrinsic

The signature proves both user presence and SE-bound authorization.

6. Extrinsic Authorization​

The Interstellar runtime verifies:

  • The SE signature against the user’s attested SE key
  • The correctness of the entered validation code

If valid:

  • The AUTH-RSP extrinsic succeeds
  • A cryptographic approval is triggered in the runtime

The original transaction or action is then signed and either returned to the initiator or broadcast to the blockchain directly.

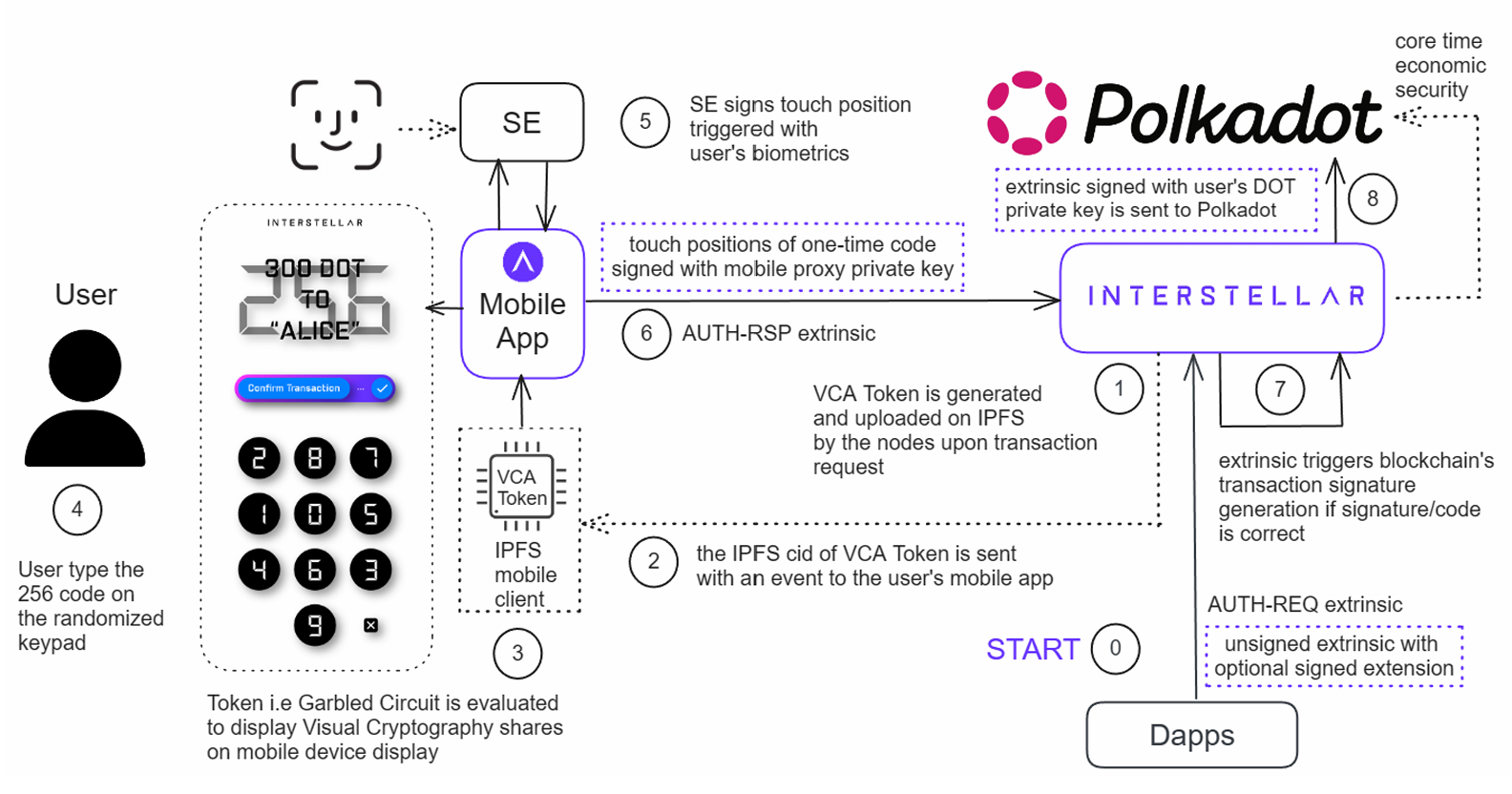

Flow Diagram​

Transaction Validation

note

The AUTH-REQ extrinsic may be submitted by the mobile app (via the SDK) or by an external DApp as an unsigned transaction. For clarity, the diagram shows the DApp submitting the extrinsic.

The AUTH-REQ extrinsic carries the transaction or action payload to be signed or executed. Upon user validation, Interstellar signs it internally and may either return the signature to the caller or submit it directly using its embedded blockchain client.

info

TAVP will be fully exposed through the mobile SDK and API endpoints in the next milestone phase, enabling seamless integration for wallet providers and dApps.

Security and Compliance​

PropertyMechanism
DSP-SCA complianceUser presence + biometric + SE-bound signing
Resistance to malware attacksKeypad input isolated from app memory
VerifiabilitySE signature is validated in TEE runtime
Replay protectionRandom keypad layout + per-session nonce

Use Cases​

  • Transaction approvals for high-value transfers or contract interactions
  • Sensitive operations like account recovery or delegation
  • Session validation for continuous authentication in critical apps

TAVP ensures that Interstellar users retain full control over transaction or sensitive action authorization, using a privacy-preserving flow that is verifiable, decentralized, and resistant to device-level compromise.
